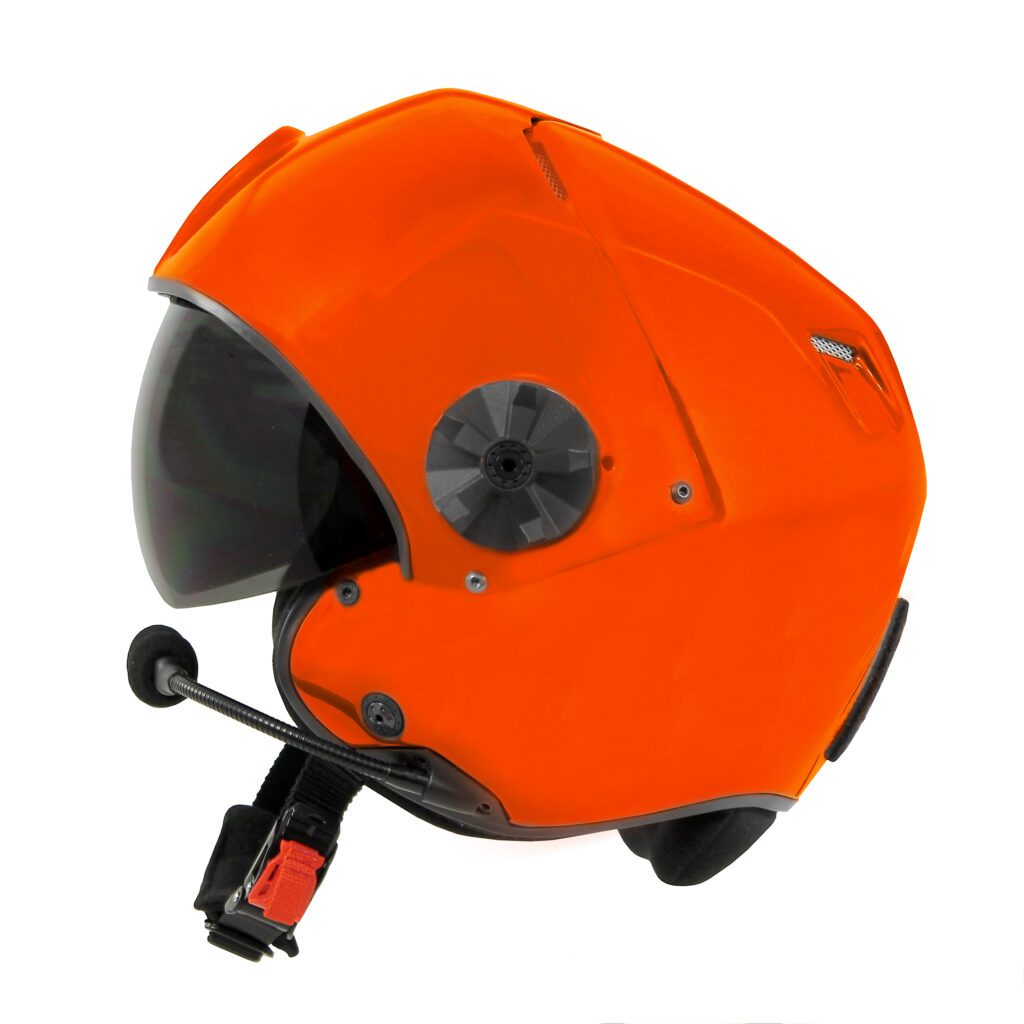

The LD-CMM Search & Rescue (SAR) Marine Helmet is an innovative design with a high degree of comfort. The visor cover is designed for use with an ANVIS mounting bracket. A Velcro insert or slide bracket is available on the back of the helmet for ANVIS power supply mounting.
LD Project is ISO 9001:2008 certified.
2 helmet shell sizes – medium and large.
Visor Cover – manufactured with aircraft technology using technical fabrics (carbon – kevlar) epoxy resin impregnated high tenacity , and flame retardant treatment.
The visor cover is designed for use with an ANVIS mounting bracket. A velcro insert or slide bracket is available on the back of the helmet for ANVIS power supply mounting.
Innovative design with a high degree of comfort.
Dual Inner Visors – standard colors are yellow, amber, clear and dark. Also offered is a Mirrored treatment. Polycarbonate 2.2 mm. thick , with anti-scratch treatment. No visual distortions, with excellent light transmittance and prismatic powers and refractive resolution. On request available with an optional third visor with antilaser treatment.
Inside – the inner shell and cheek pads are made of high density polystyrene with excellent absorption capacity to impacts. The comfort lining is made of nomex fabric (flame retardant) hypoallergenic treatement coupled with mtp sponges of suitable thickness.
Retension System – the retention system consists of kevlar tape and steel and self-extinguishing plastic buckle with quick release and micrometric adjustment.
Other Components – all components are made of self extinguishing plastic. The plates that actuate the two visors are made of cnc aluminum with black anodized finishing.
Borders and Gaskets – made of self-extinguishing pvc.
Helmet bag for storage and transport made of high strength cordura, padded internally to preserve and protect the helmet. Equipped with interior and exterior pockets for accessories and other components (included).
NOTE: Whenever using the helmet in Salt Water, it is advisable to wash and rinse in fresh water, then allow to air dry.
Sizes: Medium Shell – 53cm to 58cm (XS, S, M), Large Shell – 59cm to 62cm (L, XL), XL Shell – 63cm to 65cm (XXL, 3XL) (SEE LAST PICTURE)
Colors: Matte or Gloss – Black, Blue, Carbon, Grey, Nato Green, Red, Sand, Yellow (High Visibility), White. Custom Graphics available on request.
Weight: Medium Shell: 1000 gram, Large Shell: 1150 gram, X Large: 1100 gram (Weights are without Communications) (Communication kit: 230 gram +/- 20 gram)
Shell Composite: Manufactured with Aircraft technology using Carbon/Kevlar high tenacity epoxy resin with flame retardant treatment. Ballistic model (LD-CMB) is vacuum cured in an auto clave.
Retention System: Consists of Kevlar tape and steel, quick release, self-extinguishing buckle, and micrometric adadjustment. Meets and/or exceeds the ANSI Z 90.4, EN 443: 2008 and ECE / EN 2205 Standards.
Cover: Manufactured with Aircraft technology using Carbon/Kevlar high tenacity epoxy resin with flame retardant treatment.
Visors: Manufactured using Lexon Polycarbonate 2.2mm thick with anti-scratch coating. Meets and/or exceeds the ECE/EN 2205 and MIL-V-43511/MIL-C-83409 standards.
Inner Shell Pads: High density Polystyrene with excellent absorption capacities for impact. Hypo allergenic treatment
Gaskets: All components are made with self-extinguishing pvc.
Other Components: All components are made with self-extinguishing plastic. Visor plates are made of CNC aluminum with black anodized finish
